Triplex Landfill Sloperiser System - Florida - (2011)

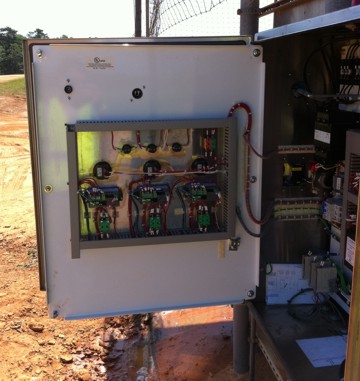

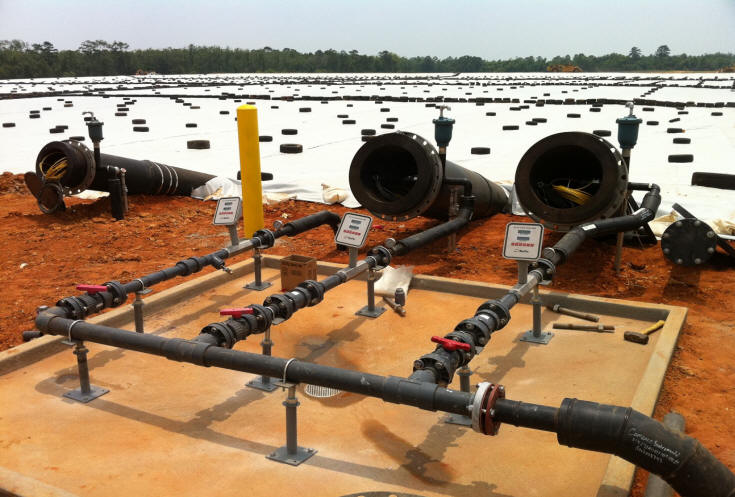

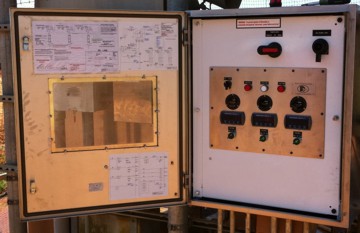

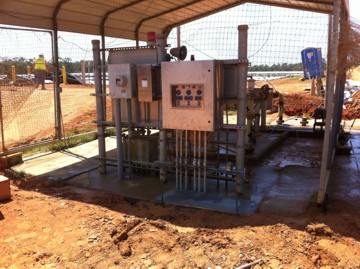

This design/build project included a UL 698A Triplex Control Panel to operate two primary and one detection zone sloperiser pumps.  The sloperiser pumps were sized from 1.5hp to 3hp and included a pressure transducer for level control and monitoring.  The panel also required provisions for alternate source of generator power.  An transfer switch was incorporated into the panel to allow a generator to be plugged into the control panel in the event of a power outage.
